X2
-

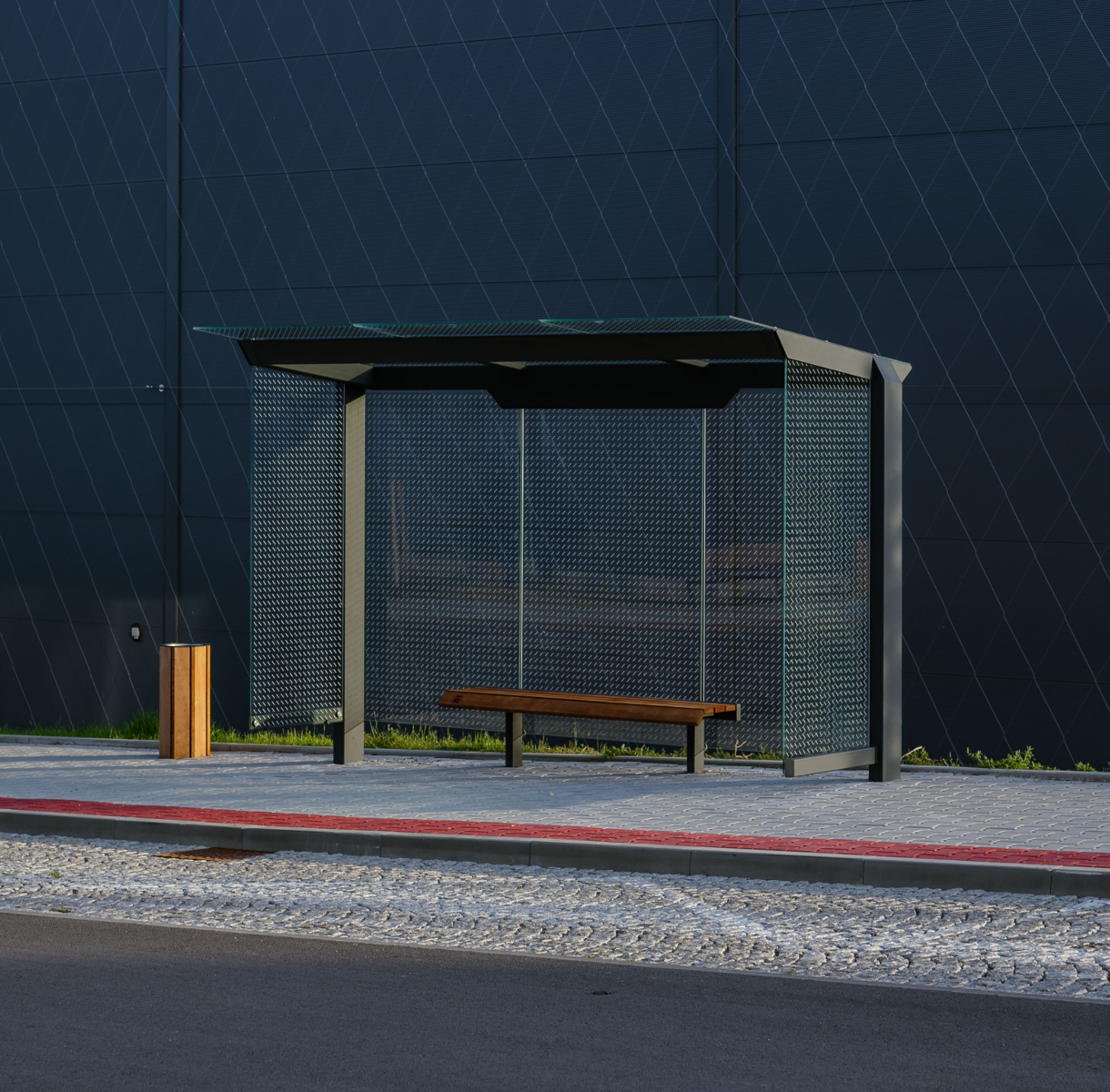

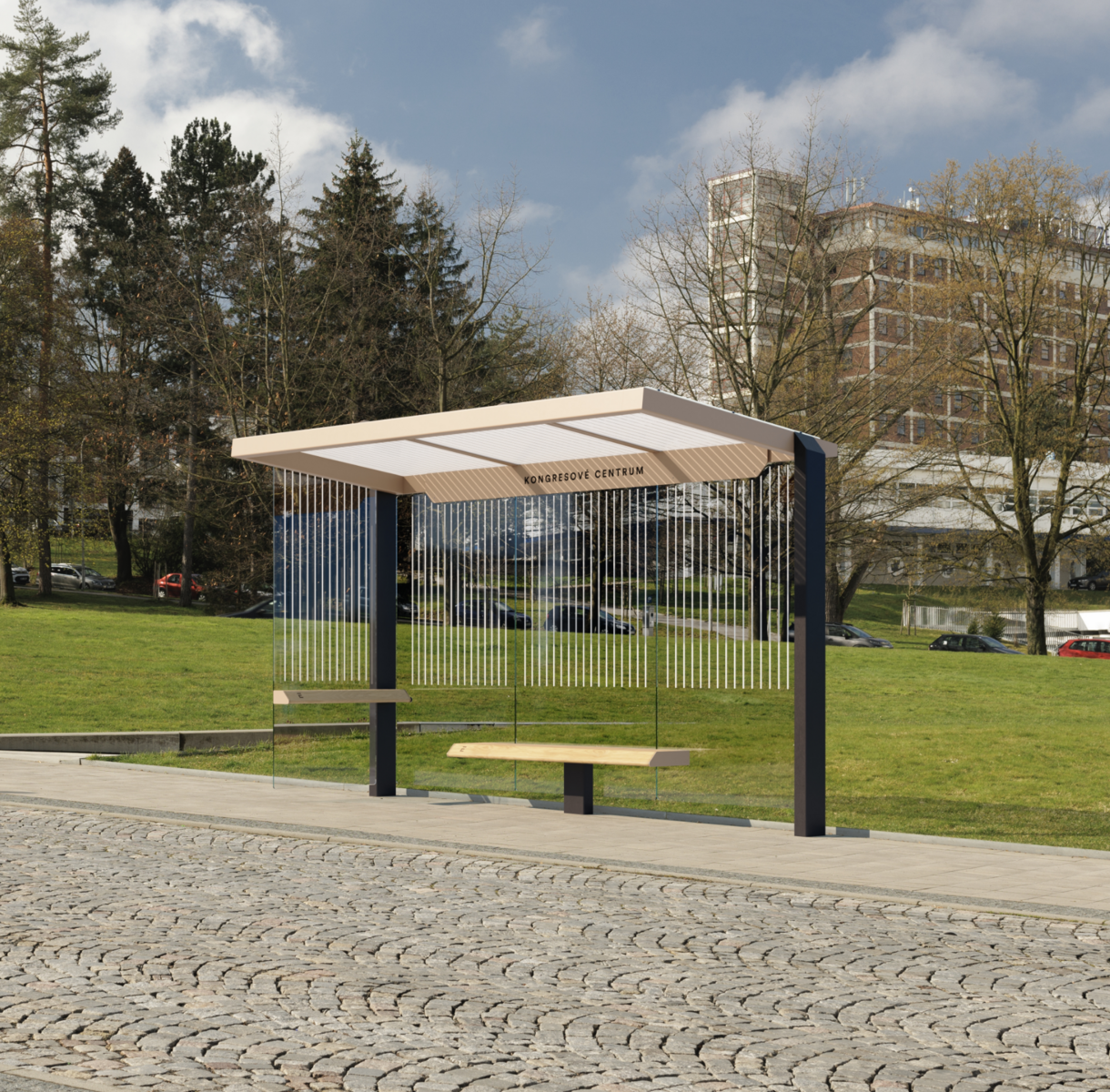

The X2 shed is modular. As standard, the product is supplied in three lengths from 2,850 to 5,545 mm.
-

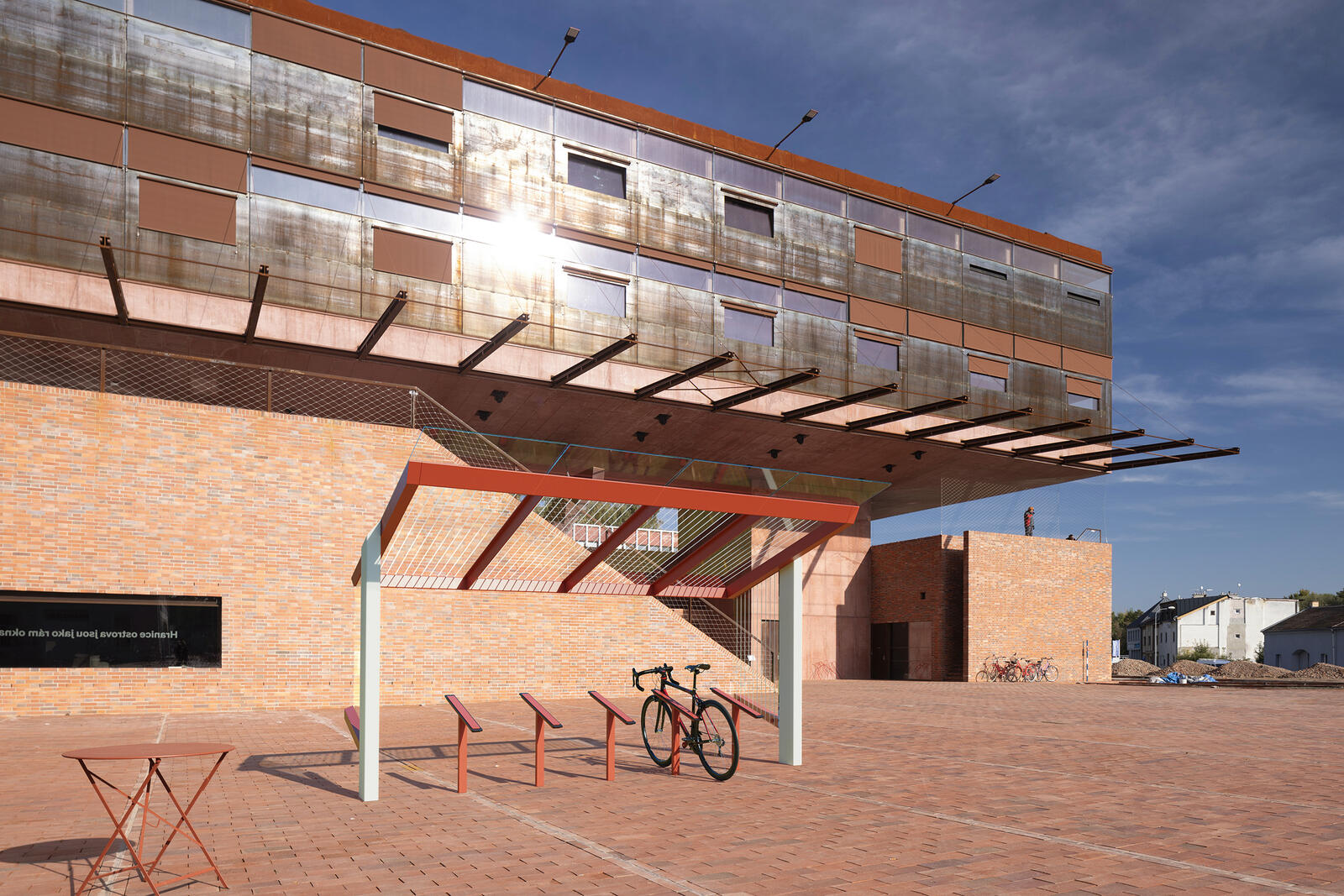

It may be delivered as a smokers or bike shelter.
-
An option without side panels is available, too.
-
The shelters may be coated with graffiti-resistant coating or delivered with individual glass panel printing.
-

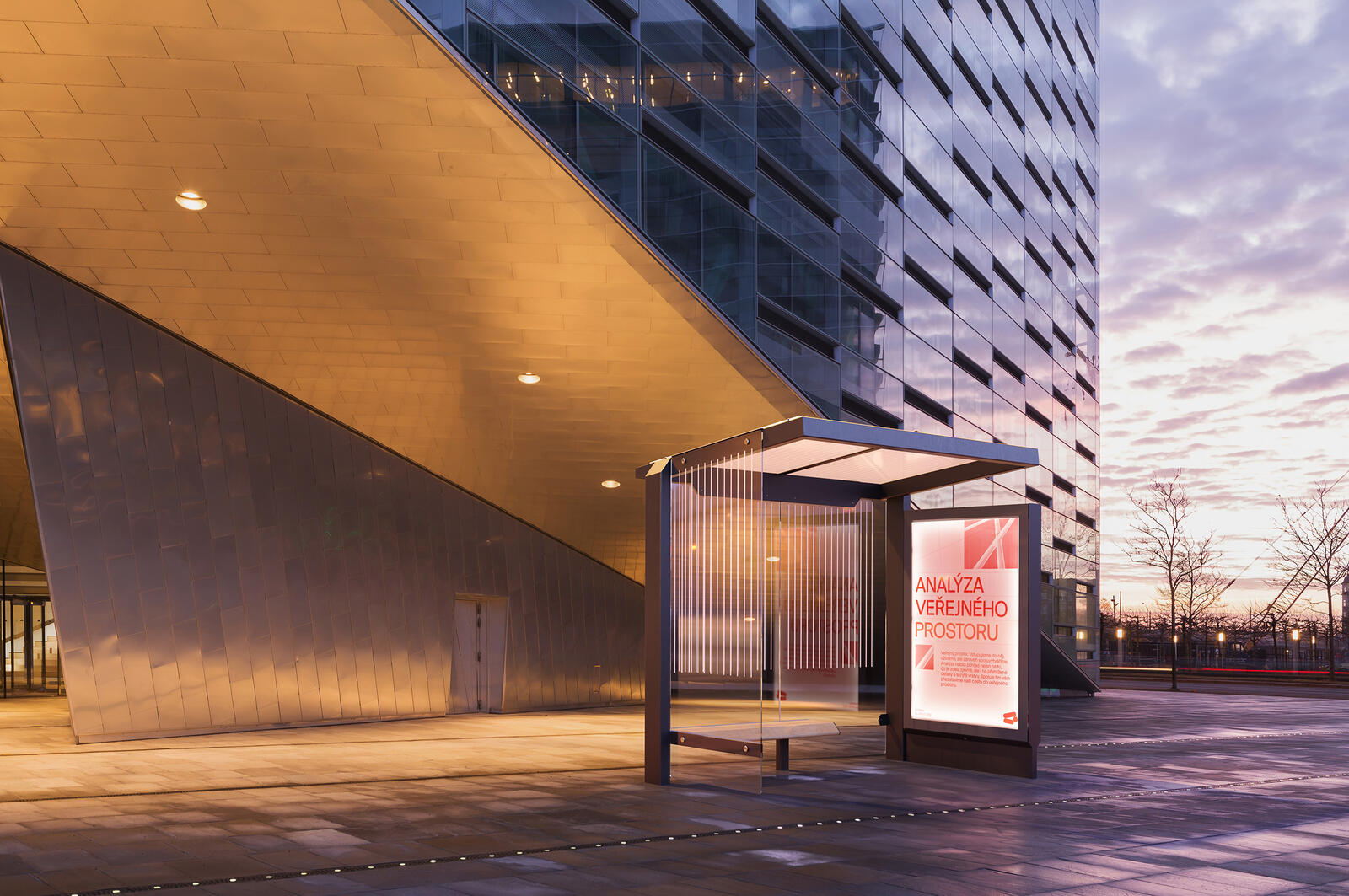

The X2 shelters may be delivered with accessories. They include for instance timetable panels, information boards, lighting, CLV showcase or ischiatic support.
-
Storm water caught by an integrated gutter is drained by a downpipe inside the supporting pillar.
-
The stop name identification panel made of sheet metal is integrated to the structure.
-

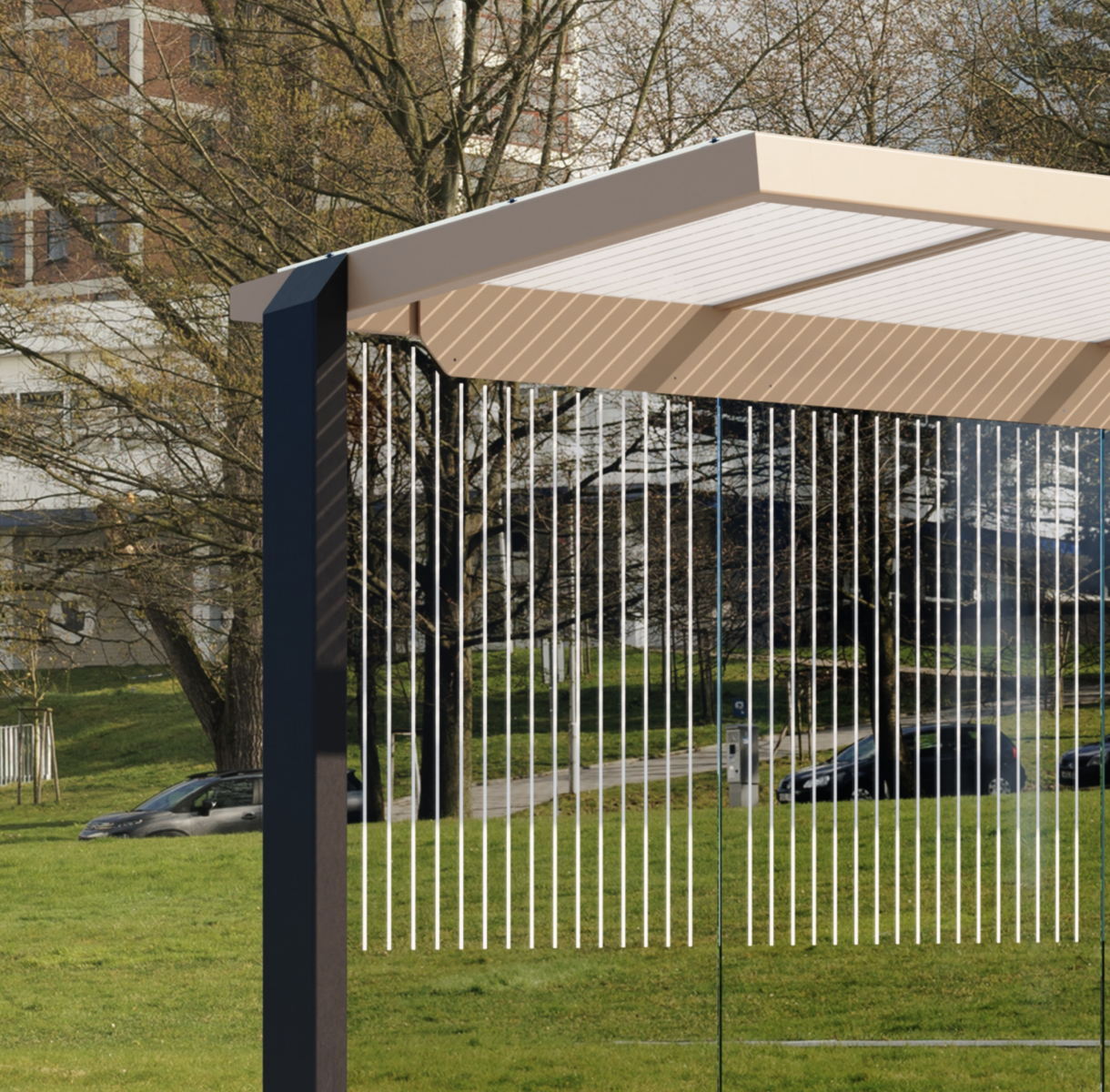

The roof is integrated to the stiffening structure. Just two supporting pillars at sides are enough even for the four-pole design. This makes it possible to have the clear rear glazing.
Roof and walls
-
The roof bottom layer is made of laminated hardened glass VSG EGS, thickness 12 mm, or thermal treatment hardened glass VSG TVG.
-
Another option is a “green” roof. It is a patent protected system based on roof trays containing frost-resistant plants.
-
Walls are made of printed hardened safety glass ESG, thickness 8 mm. The printing may be individually designed.
Materials
-
The self-supporting structure is made of closed steel profiles and sheet metal. The finish is a combination of a zinc layer and baking power paint. Matted colour shades are to be chosen from the RAL swatch.
-
The seat is made of solid heat-treated or tropical species wood. Teak oil coat is an option.
Supplements
The X2 shed may be supplied with individually designed glass panel printing, message board, timetable panel, identification panel and lighting. It is designed for the installation of a “Citylight” format panel.
Anchoring
It is anchored by threaded bars screwed into in advance prepared foundation strips or slabs below the paving level. For detailed instructions for the preparation of the bottom structure see the product documentation.
